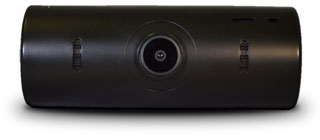

Advanced Streaming Camera Specification
| Dimension | 45mm x 120mm |
| Processor | 1.2GHz Quad core CPU |
| RAM | 512 DDR3 |
| Nand Flash | 128G bytes eMMC |
| Buttons | 3 hole (recovery, reset, power) |
| USB | 5-pin USB connector |
| Speaker | Built-in |
| Camera | |
| Sensor | OV010635 |
| Resolution | 1280p * 1080p |
| Frame rate | 25fps |
| Sensitivity | 3650mV/Lux-sec |
| Dynamic | 115dB |
| Angle of aperture | 160o |
| Video Recording | |
| Storage | Internal flash |
| File format | FAT32 |
| Storage card | (optional) |
| Dual streaming | Continuously and event driven |
| Event trigger | Internal g-force sensor |
| Length | Configurable up to 30s pre and 120s post event |
| Transmission | 4G upload to server |
| High event video handling | Stored to internal memory / automatic upload to server |
| Low & medium event video handling | Stored to internal memory / upload to server manually |
| Security during video transmission | TLS-encryption during data transmission |
| G-Force Sensor | |
| Axis | 3 |
| Accident level | Adjustable 0g – 2g |
| Trigger level | 3 level (low, medium, high) |
| Calibration | Auto adjustment after installation |
| Sampling rate | 50Hz – 1600Hz |
| GPS | |
| Chipset | Ublox MAX-8Q |
| System | GPS/GLONASS |
| Update rate | 5Hz |
| Antenna connector | Internal |
| 4G | |
| Chipset | Telit HE910 |
| Versions | UMTS |
| Max. data rate upload | UMTS 5.2Mbit |
| Voice | Supported |
| BT | Yes |
| WiFi | Yes |
| Gyroscope | Yes |
| Battery | 1500mAh |
| Operating Temp | -15 to 75 degrees |
| Connector | Molex 6-pin MicroFit |
| Input | Panic input / event trigger |
| GND | GND |
| RX | TTL |
| TX | TTL |
| Ignition | Input up to 32V |
| Power | Vcc/GND (9-32V) |
